Controllers in ASP.NET MVC

In this section, you will learn about the Controller in ASP.NET MVC.

The Controller in MVC architecture handles any incoming URL request. The Controller is a class, derived from the base class System.Web.Mvc.Controller. Controller class contains public methods called Action methods. Controller and its action method handles incoming browser requests, retrieves necessary model data and returns appropriate responses.

In ASP.NET MVC, every controller class name must end with a word "Controller". For example, the home page controller name must be HomeController, and for the student page, it must be the StudentController. Also, every controller class must be located in the Controller folder of the MVC folder structure.

Adding a New Controller

Now, let's add a new empty controller in our MVC application in Visual Studio.

MVC will throw "The resource cannot be found" error when you do not append "Controller" to the controller class name.

In the previous section, we learned how to create our first MVC application, which created a default HomeController. Here, we will create new StudentController class.

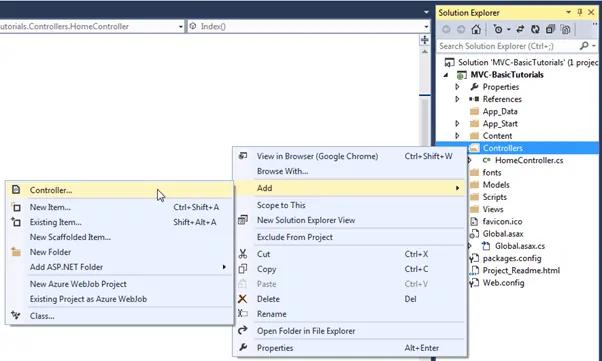

In the Visual Studio, right click on the Controller folder -> select Add -> click on Controller..

Add New Controller in ASP.NET MVC
Add New Controller

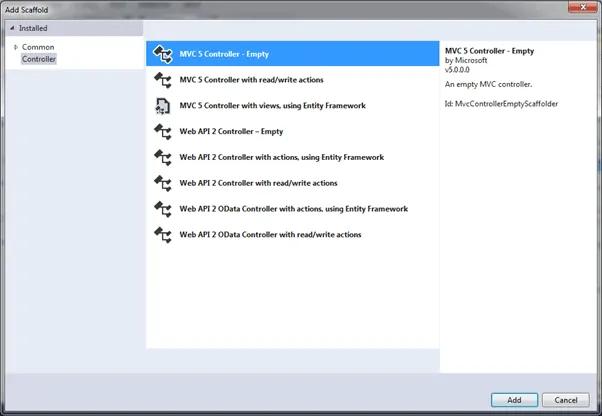

This opens Add Scaffold dialog, as shown below.

Note:
Scaffolding is an automatic code generation framework for ASP.NET web applications. Scaffolding reduces the time taken to develop a controller, view, etc. in the MVC framework. You can develop a customized scaffolding template using T4 templates as per your architecture and coding standards.
Adding Controller

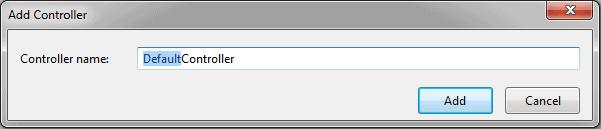

Add Scaffold dialog contains different templates to create a new controller. We will learn about other templates later. For now, select "MVC 5 Controller - Empty" and click Add. It will open the Add Controller dialog, as shown below

Adding Controller

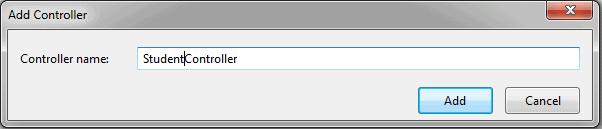

In the Add Controller dialog, enter the name of the controller. Remember, the controller name must end with Controller. Write StudentController and click Add.

Adding Controller

This will create the StudentController class with the Index() method in StudentController.cs file under the Controllers folder, as shown below.

Example: Controller
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.Mvc;

namespace MVC_BasicTutorials.Controllers
{
    public class StudentController : Controller
    {
        // GET: Student
        public ActionResult Index()
        {
            return View();
        }
    }
}

As you can see above, the StudentController class is derived from the Controller class. Every controller in MVC must be derived from this abstract Controller class. This base Controller class contains helper methods that can be used for various purposes.

Now, we will return a dummy string from the Index action method of above the StudentController. Changing the return type of Index method from ActionResult to string and returning dummy string is shown below. You will learn about the ActionResult in the next section.

Example: Controller
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.Mvc;

namespace MVC_BasicTutorials.Controllers
{
    public class StudentController : Controller
    {
        // GET: Student
        public string Index()
        {
                return "This is Index action method of StudentController";
        }
    }
}

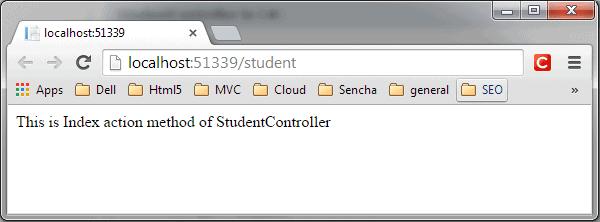

We have already seen in the routing section that the URL request http://localhost/student or http://localhost/student/index is handled by the Index() method of the StudentController class, as shown above. So let's invoke it from the browser and you will see the following page in the browser.

Controller
Points to Remember :
  1. The Controller handles incoming URL requests. MVC routing sends requests to the appropriate controller and action method based on URL and configured Routes.
  2. All the public methods in the Controller class are called Action methods.
  3. The Controller class must be derived from System.Web.Mvc.Controller class.
  4. The Controller class name must end with "Controller".
  5. A new controller can be created using different scaffolding templates. You can create a custom scaffolding template also.
