Joining Operator: GroupJoin

We have seen the Join operator in the previous section. The GroupJoin operator performs the same task as Join operator except that GroupJoin returns a result in group based on specified group key. The GroupJoin operator joins two sequences based on key and groups the result by matching key and then returns the collection of grouped result and key.

GroupJoin requires same parameters as Join. GroupJoin has following two overload methods:

GroupJoin Overload Methods:

public static IEnumerable<TResult> GroupJoin<TOuter, TInner, TKey, TResult>(this IEnumerable<TOuter> outer, IEnumerable<TInner> inner, Func<TOuter, TKey> outerKeySelector, Func<TInner, TKey> innerKeySelector, Func<TOuter, IEnumerable<TInner>, TResult> resultSelector);

public static IEnumerable<TResult> GroupJoin<TOuter, TInner, TKey, TResult>(this IEnumerable<TOuter> outer, IEnumerable<TInner> inner, Func<TOuter, TKey> outerKeySelector, Func<TInner, TKey> innerKeySelector, Func<TOuter, IEnumerable<TInner>, TResult> resultSelector, IEqualityComparer<TKey> comparer);

As you can see in the first overload method takes five input parameters (except the first 'this' parameter): 1) outer 2) inner 3) outerKeySelector 4) innerKeySelector 5) resultSelector. Please notice that resultSelector is of Func delegate type that has second input parameter as IEnumerable type for inner sequence.

Now, let's understand GroupJoin using following Student and Standard class where Student class includes StandardID that matches with StandardID of Standard class.

Example Classes
public class Student{
    public int StudentID { get; set; }
    public string StudentName { get; set; }
    public int StandardID { get; set; }
}

public class Standard{
    public int StandardID { get; set; }
    public string StandardName { get; set; }
}


Consider the following GroupJoin query example.

Example: GroupJoin in Method syntax C#
IList<Student> studentList = new List<Student>() {
    new Student() { StudentID = 1, StudentName = "John", StandardID =1 },
    new Student() { StudentID = 2, StudentName = "Moin", StandardID =1 },
    new Student() { StudentID = 3, StudentName = "Bill", StandardID =2 },
    new Student() { StudentID = 4, StudentName = "Ram",  StandardID =2 },
    new Student() { StudentID = 5, StudentName = "Ron" }
};

IList<Standard> standardList = new List<Standard>() {
    new Standard(){ StandardID = 1, StandardName="Standard 1"},
    new Standard(){ StandardID = 2, StandardName="Standard 2"},
    new Standard(){ StandardID = 3, StandardName="Standard 3"}
};

var groupJoin = standardList.GroupJoin(studentList,  //inner sequence
                                std => std.StandardID, //outerKeySelector
                                s => s.StandardID,     //innerKeySelector
                                (std, studentsGroup) => new // resultSelector
                                {
                                    Students = studentsGroup,
                                    StandarFulldName = std.StandardName
                                });

foreach (var item in groupJoin)
{
    Console.WriteLine(item.StandarFulldName );

    foreach(var stud in item.Students)
        Console.WriteLine(stud.StudentName);
}

Output:

Standard 1: John, Moin, Standard 2: Bill, Ram, Standard 3:

In the above example of GroupJoin query, standardList is the outer sequence, because the query starts from it. The first parameter in GroupJoin method is to specify the inner sequence, which is studentList in the above example. The second and third parameters of the GroupJoin() method are to specify a field whose value should be matched using lambda expression, in order to include element in the result. The key selector for the outer sequence standard => standard.StandardID indicates that StandardID field of each elements in standardList should be match with the key of inner sequence studentList student => student.StandardID. If value of both the key field is matched then include that element into grouped collection studentsGroup where key would be StandardID.

The last parameter in Join method is an expression to formulate the result. In the above example, result selector includes grouped collection studentGroup and StandardName.

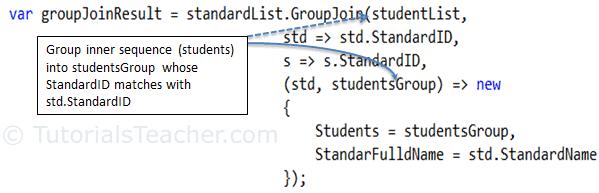

The following image illustrate that inner sequence grouped into studentsGroup collection for matching StandardID key and that grouped collection can be used to formulate the result.

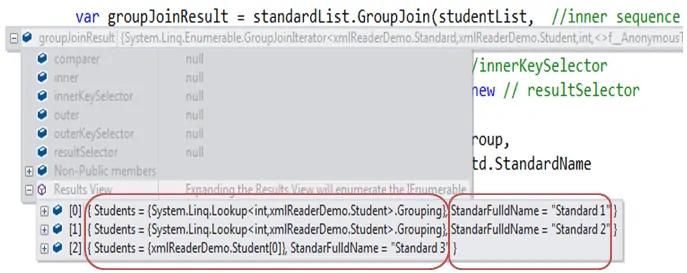

Resultset would include an anonymous objects that has the Students and StandardFullName properties. Students property will be a collection of Students whose StandardID matches with Standard.StandardID.

You can access the result using a 'foreach' loop. Each element will have the StandardFullName & Students property, where Students will be a collection.

Example: Access GroupJoin Result in C#
foreach (var item in groupJoinResult)
{
    Console.WriteLine(item.StandarFulldName );

    foreach(var stud in item.Students)
        Console.WriteLine(stud.StudentName);
}


Following is an example of GroupJoin in VB.Net:

Example: GroupJoin in Method VB.Net
Dim groupJoin = standardList.GroupJoin(  ' outer sequence
                    studentList, ' inner sequence
                    Function(s) s.StandardID, ' outerKeySelector
                    Function(stud) stud.StandardID, ' innerKeySelector
                    Function(s, studentGroup) New With { ' result selector
                            .students = studentGroup,
                            .standardName = s.StandardName
                    })

For Each item In groupJoin

    Console.WriteLine(item.standardName)

    For Each std In item.students
            Console.WriteLine( std.StudentName)
    Next

Next

Output:

Standard 1: John, Moin, Standard 2: Bill, Ram, Standard 3:

GroupJoin in Query Syntax

GroupJoin operator in query syntax works slightly different than method syntax. It requires an outer sequence, inner sequence, key selector and result selector. 'on' keyword is used for key selector where the left side of 'equals' operator is the outerKeySelector and the right side of 'equals' is the innerKeySelector. Use the into keyword to create the grouped collection.

Syntax: GroupJoin in Query Syntax

from ... in outerSequence

join ... in innerSequence

on outerKey equals innerKey

into groupedCollection

select ...

The following example demonstrates the GroupJoin in query syntax.

Example: GroupJoin Query Syntax C#

                    IList<Student> studentList = new List<Student>() {
                    new Student() { StudentID = 1, StudentName = "John", Age = 13, StandardID =1 },
                    new Student() { StudentID = 2, StudentName = "Moin",  Age = 21, StandardID =1 },
                    new Student() { StudentID = 3, StudentName = "Bill",  Age = 18, StandardID =2 },
                    new Student() { StudentID = 4, StudentName = "Ram" , Age = 20, StandardID =2 },
                    new Student() { StudentID = 5, StudentName = "Ron" , Age = 15 }
};

IList<Standard> standardList = new List<Standard>() {
                    new Standard(){ StandardID = 1, StandardName="Standard 1"},
                    new Standard(){ StandardID = 2, StandardName="Standard 2"},
                    new Standard(){ StandardID = 3, StandardName="Standard 3"}
};

var groupJoin = from std in standardList
                    join s in studentList
                    on std.StandardID equals s.StandardID
                    into studentGroup
                    select new {
                              Students = studentGroup ,
                              StandardName = std.StandardName
                          };

foreach (var item in groupJoin)
{
                    Console.WriteLine(item.StandarFulldName );

                    foreach(var stud in item.Students)
                    Console.WriteLine(stud.StudentName);
}


Example: GroupJoin Query Syntax VB.Net

                    Dim groupJoin = From s In standardList
                Group Join stud In studentList
                On stud.StandardID Equals s.StandardID
                Into Group _
                Select _
                StudentsGroup = Group,
                StandardName = s.StandardName


Output:

Standard 1: John, Moin, Standard 2: Bill, Ram, Standard 3:

In the VB.Net, the InTo keyword will create a group of all students of same standard and assign it to the Group keyword. So, use Group in the projection result.

Note:

Use of the equals operator to match key selector. == is not valid.
