Angular 2 Components

Here, you will learn about the Angular component and how to create a custom component using Angular CLI.

Angular is a SPA framework, and a view is made of one or more component. An Angular component represents a portion of a view.

Generally, an interactive web page is made of HTML, CSS, and JavaScript. Angular component is no different.

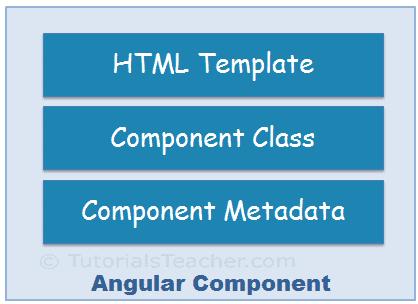

Angular Component = HTML Template + Component Class + Component Metadata

HTML Template

HTML template is nothing but a regular HTML code with additional Angular specific syntax to communicate with the component class.

Class

Essentially, a component class is a TypeScript class that includes properties and methods. Properties store data and methods include the logic for the component. Eventually, this class will be compiled into JavaScript.

Metadata

Metadata is some extra data for a component used by Angular API to execute the component, such as the location of HTML and CSS files of the component, selector, providers, etc.

Generate Angular Component using Angular CLI

You can create files for a component manually or using the Angular CLI command. Angular CLI reduces the development time. So, let's use Angular CLI to create a new component.

Use the following CLI command to generate a component.

All Angular CLI command starts with ng, generate or g is a command, component is an argument and then the name of the component.

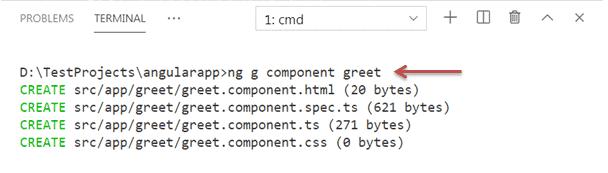

The following executes the ng g command to generate the greet component in VS Code.

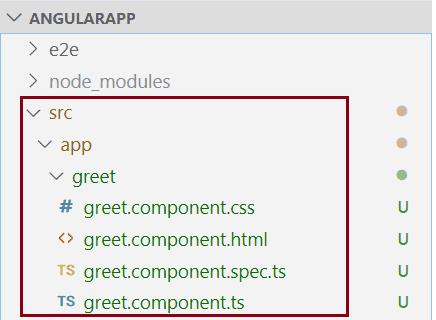

The above command will create a new "greet" folder and app folder and create four files, as shown below.

Above, greet.component.css is a CSS file for the component, greet.component.html is an HTML file for the component where we will write HTML for a component, greet.component.spec.ts is a test file where we can write unit tests for a component, and greet.component.ts is the class file for a component.

Now, open greet.component.ts file in VS Code, and you will see the following code.

import { Component, OnInit } from '@angular/core';

@Component({
  selector: 'app-greet',
  templateUrl: './greet.component.html',
  styleUrls: ['./greet.component.css']
})
export class GreetComponent implements OnInit {

  constructor() { }

  ngOnInit(): void {
  }

}

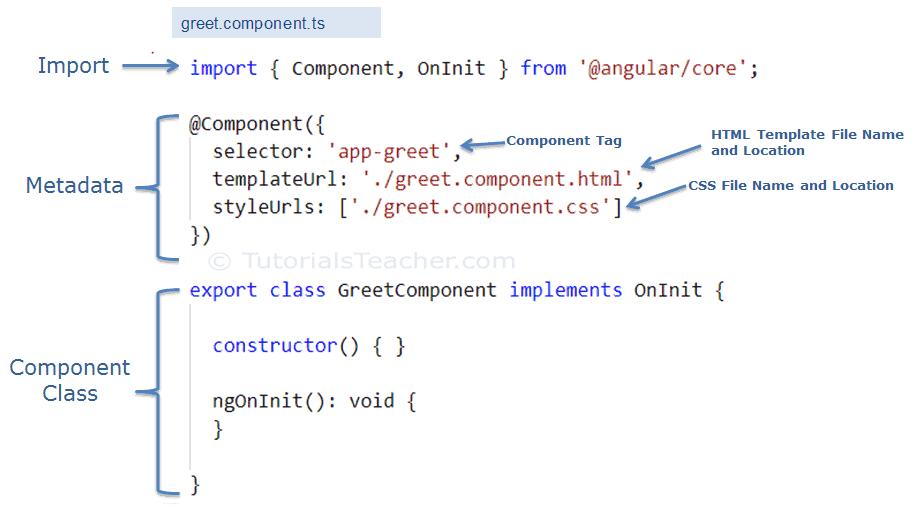

The following figure illustrates the important part of the component class.

The greet.component.ts includes the following parts:

Component Class: GreetComponent is the component class. It contains properties and methods to interact with the view through an Angular API. It implements the OnInit interface, which is a lifecycle hook.

Component Metadata: The @Component is a decorator used to specify the metadata for the component class defined immediately below it. It is a function and can include different configs for the component. It instructs Angular where to get required files for the component, create and render component. All Angular components must have @Component decorator above the component class.

The import statement gets the required feature from the Angular or other libraries. Import allows us to use exported members from external modules. For example, @Component decorator and OnInit interface are contained in @angular/core library. So, we can use them after importing it.

Now, let's add a property and method in the component class, as shown below.

export class GreetComponent implements OnInit {

  constructor() { }

  ngOnInit(): void {
  }

  name: string = "Steve";

  greet(): void {
      alert("Hello " + this.name);
  };

}

Above, we have added the name property and the greet method in the component class. Let's use these in the HTML template.

Open greet.component.html file, remove existing code and add the following code.

<div>
    Enter Your Name: <input type="text" value={{name}} /> <br />
    <button (click)="greet()">Greet Me!</button>
</div>

In the above HTML template, we used name property in the {{ }} interpolation to display its value and greet() function as click event. Lean more about it in event binding section.

Bootstrapping Component

Now, it's time to load our component, but before that, we need to host our application and load the root component. This process is called bootstrapping.

Angular is a single page application (SPA) framework. So, we need to host our application in index.html, and then we need to define a root module to bootstrap our root component. Index.html will be the only web page in an Angular application, and that's why it is called SPA.

When you generate Angular application using Angular CLI, it automatically creates index.html, root component app.component.ts, root module app.module.ts, and HTML template app.component.html for you. The AppComponent class in app.component.ts is a root component, and the AppModule class in app.module.ts is a root module.

Here, we will load our greet component into the root component in two steps.

1. Declare a component in the root module.

We want to load our new GreetComponent into the root component. So, the root module must know about it. We can do it by adding the GreetComponent in the declarations array in app.module.ts, as shown below.

import { BrowserModule } from '@angular/platform-browser';
import { NgModule } from '@angular/core';

import { AppRoutingModule } from './app-routing.module';
import { AppComponent } from './app.component';
import { GreetComponent } from './greet/greet.component'; //import GreetComponent

@NgModule({
  declarations: [
    AppComponent,
    GreetComponent  // <- include GreetComponent in declarations
  ],
  imports: [
    BrowserModule,
    AppRoutingModule
  ],
  providers: [],
  bootstrap: [AppComponent]
})
export class AppModule { }

2. Add component tag in the root HTML template.

After adding a component declaration, use component tag <app-greet></app-greet> in the HTML file of the root component, which is app.component.html, as shown below.

<div>
    <app-greet></app-greet>
</div>

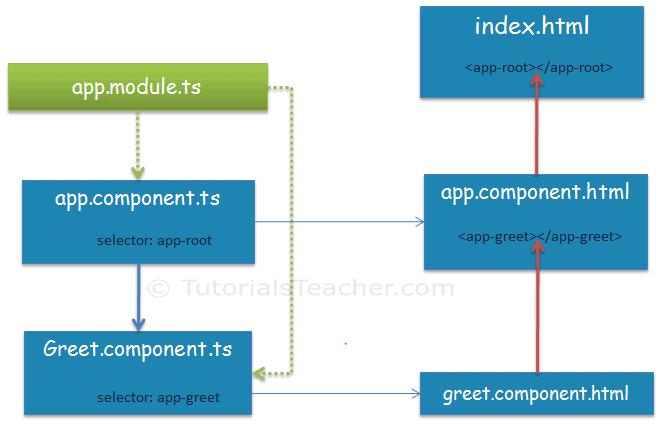

The following figure illustrates the component bootstrap process:

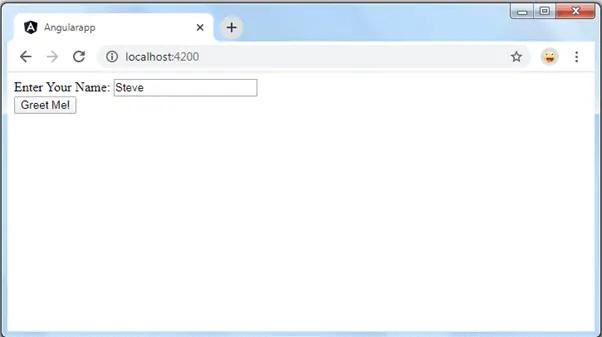

Run the app by executing npm start command in the terminal of VS Code. After successful compilation, open the browser and enter http://localhost:4200. The following page will be displayed.

This is how we can create and use custom components in Angular.

We can also create a single component file greet.component.ts if the HTML code of a component is less. Use the template parameter in the @Component decorator to include HTML of the component. The following greet component gives the same result as above.

import { Component } from '@angular/core';

@Component({
    selector: "app-greet",
    template: `<div>
    Enter Your Name: <input type="text" value={{name}} /> <br/>
    <button (click)="greet()">Greet Me!</button>
    </div>`
})

export class GreetComponent {

    name: string = "Steve";
    greet(): void {
        alert("Hello " + this.name);
    };
}
